Advanced Basement Systems Before & After Photos

Problem:  These homeowners in Kent County were experiencing a leaky basement for years. They were reluctant to fix the problem as they assumed that their driveway and landscaping would be destroyed in the process. In the meantime, the wet basement environment was ruining their stored items, resulting in damage and mould.

Solution: Our basement waterproofing system does not affect the outside appearance of homes. Our system directs the leaking water away from the walls and floors and into a new drain and upgraded sump pump. We finished off the walls with our ThermalDry® Basement Radiant Wall Barrier which not only keeps the water from leaking into the basement but also improves the comfort of the entire home and helps to reduce energy costs.

Inspector:  Cory

Foreman: Justin

The homeowner called Advanced Basement Systems because he wanted to use his crawl space for storage but had concerns about ongoing water flooding and high humidity.

The crawl space was partially done including full exterior wall insulation with vapour barrier and a rough concrete floor. Upon inspection it was clear the fiberglass insulation contained high levels of water and mould growth.

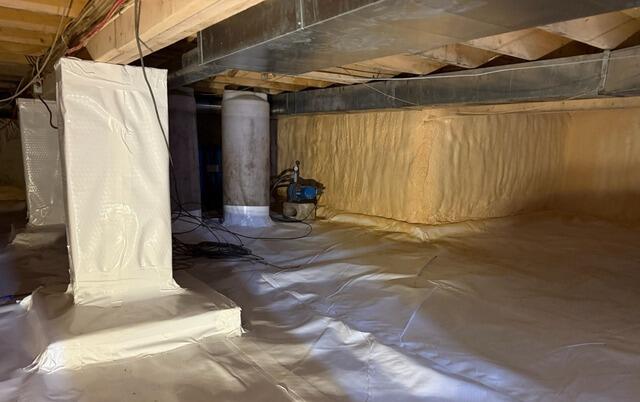

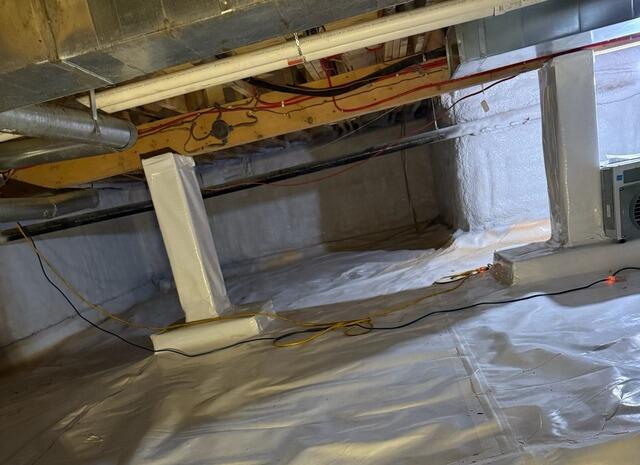

Advanced Basement Systems removed all the insulation and vapour barrier before starting the repair process. A new sump pump system and drainage was added to reduce the water entering the home. Encapsulation of the crawl space was next using Clean Space and spray foam to seal the area and provide the needed insulation to keep the crawl space conditioned. It is important to note, spray foam needs to be include in the header area (above the foundation wall), but not in the floor joist and subfloor area. A thermal barrier was required over the spray foam because the furnace was located in the crawl space. This was achieved with the use of paint-based spray called DC315. The final step of the project was to install an efficient, high-performance dehumidifier that will dry the space and keep it that way in the future.

Advanced Basement Systems provides home owners in London, Chatham, Windsor, Sarnia and surrounding areas complete the repairs they need to damp crawl spaces and basements. Contact us if you want to improve your home.

Problem: This crawl space was very humid and full of condensation. Also as you can see it flooded.

Solution: We installed sufficient drainage with a sump pump that discharges outside. The Clean Space vapor barrier was installed to isolate the home from the earth, making it a dry & healthy space.

Inspector: Tom

Foreman: Shawn

Problem: This home had evidence of a leaky basement. Concrete is porous and over time, water can work its way in and cause damage.

Solution:  We installed a perimeter drain in the floor along the problem basement walls. We also installed the ThermalDry® Wall system. As moisture and water passes through concrete foundation walls, the ThermalDry® Wall systems serves as both a vapour barrier and as a way to redirect water leaking into the newly installed drainage system below.

Inspector: Tom

Foreman: Paul

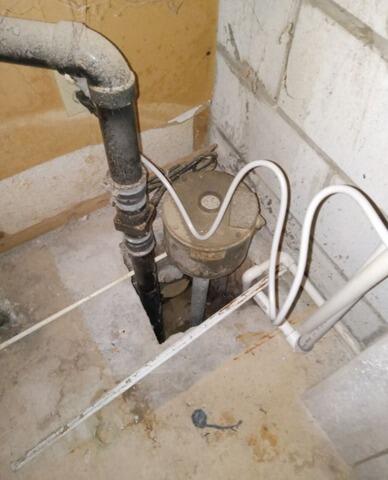

Problem: This small concrete crock houses an inefficient pump. It's very small and any rush of water could flood the basement.

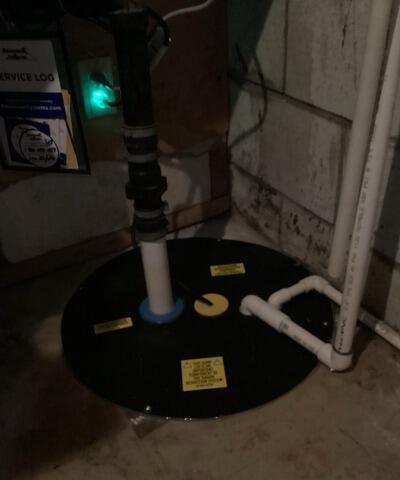

Solution: We removed the concrete crock and installed our attractive, large Super Sump unit.

Inspector: Tom

Foreman: Justin
